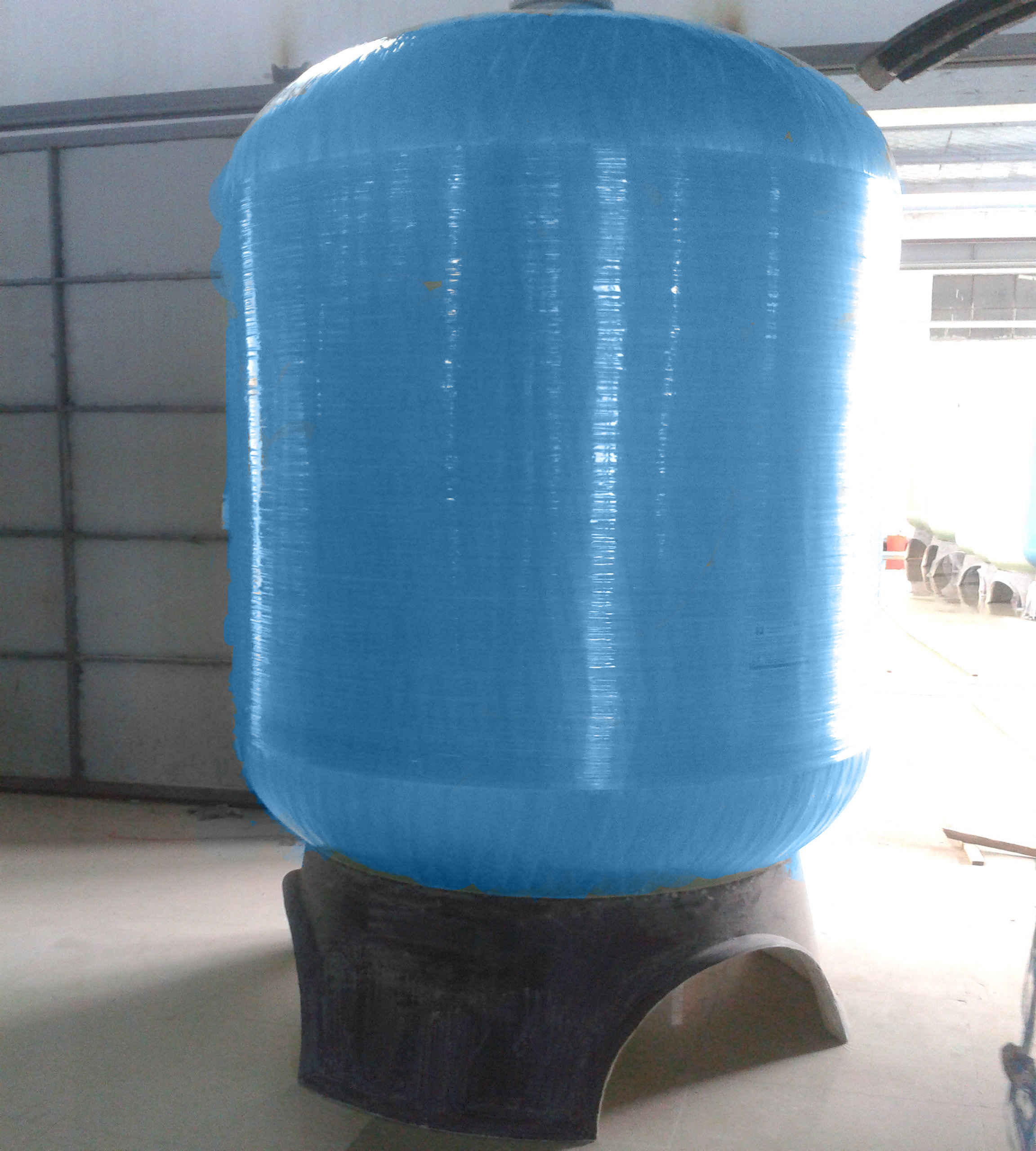

FRP tank: 4894inch

Size:1200*2400mm

Capacity:1909L

Opening:6"-6"flg

In/out pipe: 3"

Matching valve: JMA501, DN65*3&DN80*2

Filter average flow: 102GPM;

Softener average flow: 150GPM

Media weight: 2200Kg(sand)/825Kg(carbon)/1275L (resin)

Matching brine tank: 2000L

Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening:  6"alloy flange

Bass Materials: FRP

Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27^oC

Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
