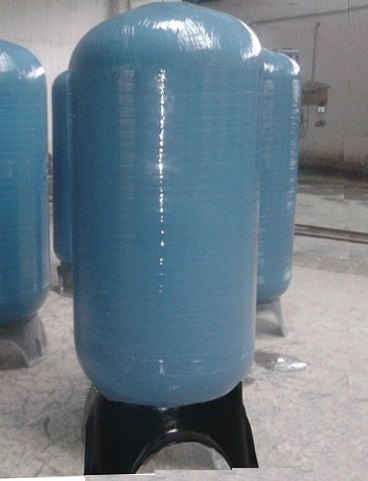

FRP tank: 3072inch

Size:750*2150mm

Capacity:728L

Opening:4"-4"

In/out pipe: 1-1/2"

Matching valve: F21/2850

Filter average flow: 39GPM;

Softener average flow: 58GPM

Media weight: 760Kg(sand)/295Kg(carbon)/425L (resin)

Matching brine tank: 350L

Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4"reinforced plastic thread

Bass Materials: FRP

Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27^oC

Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
