   FRP Tank      9411502416
Price :
Type : 2472H(inch),4T4B
Function : pressure vessel
Packaging Size : cardboard packaging
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 126 times

Detailed Information

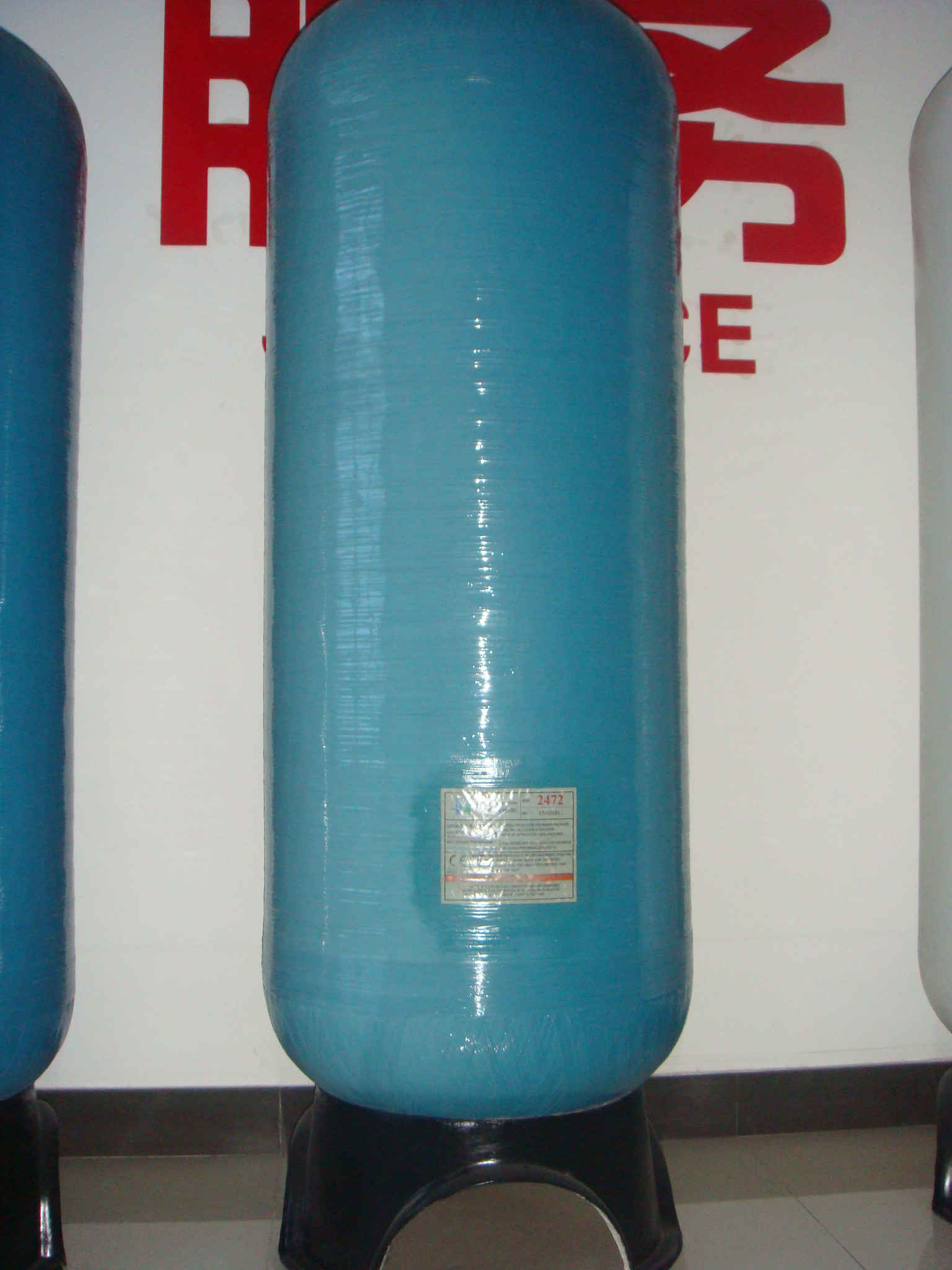

FRP tank: 2472Hinch

Size:900*1850mm

Capacity:471L

Opening:4"-4"

In/out pipe:1-1/ 2"

Matching valve: F21/F15/2850

Filter average flow: 25GPM;

Softener average flow: 38GPM

Media weight: 550Kg(sand)/200Kg(carbon)/325L (resin)

Matching brine tank: 350L



Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4" reinforced plastic thread

Bass Materials: FRP



Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27oC





Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
