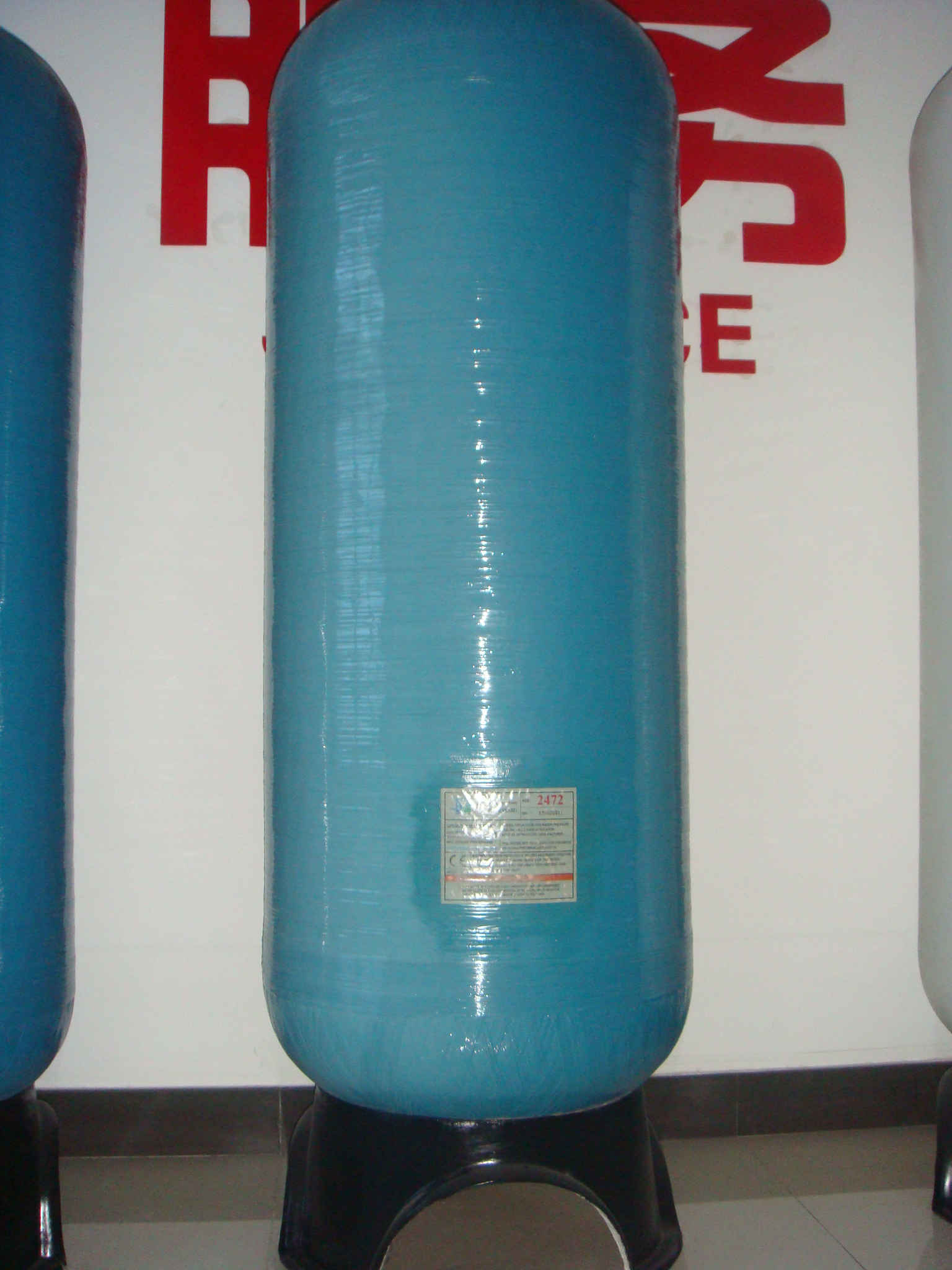

FRP tank: 2472inch

Size:600*1850mm

Capacity:415L

Opening:4"-4"

In/out pipe:1-1/ 2"

Matching valve: F21/F15/2850

Filter average flow: 25GPM;

Softener average flow: 38GPM

Media weight: 500Kg(sand)/150Kg(carbon)/275L (resin)

Matching brine tank: 1500L

Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4" reinforced plastic thread

Bass Materials: FRP

Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27^oC

Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
