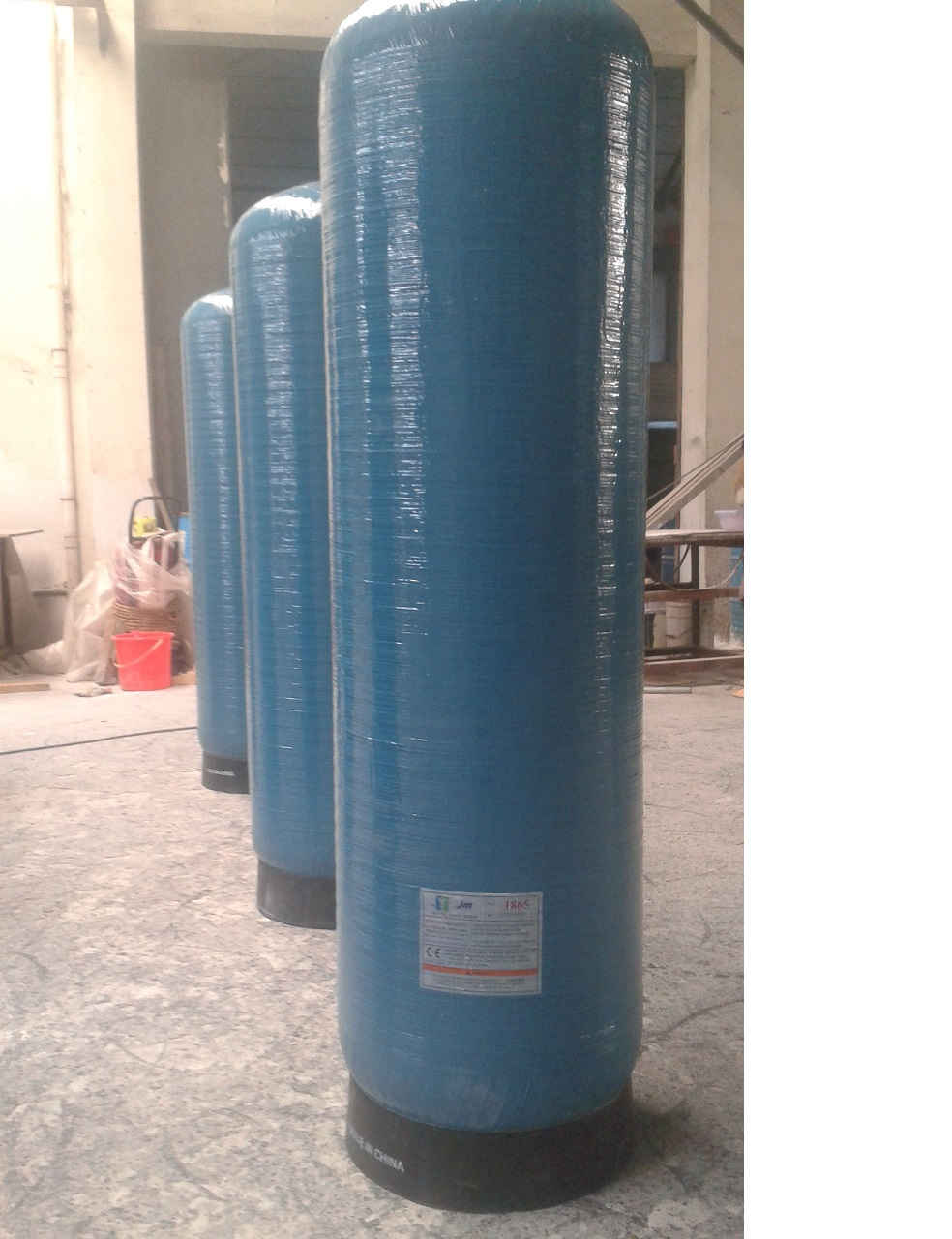

   FRP Tank      9412534216
Price :
Type : 1865(inch),4T
Function : pressure vessel
Packaging Size : 46*46*1658(cm)
Delivery Period : 1 day
Availability : total 50 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 124 times

Detailed Information

FRP tank:1865inch

Size:450*1650mm

Capacity:257L

Opening:4"-4"

In/out pipe: 1"

Matching valve: F15/D/2750

Filter average flow: 14GPM;

Softener average flow: 21GPM

Media weight: 285Kg(sand)/110Kg(carbon)/175L (resin)

Matching brine tank: 200L



Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4" reinforced plastic thread,

Bass Materials: FRP



Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-4oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27oC





Design parameter

Safety ratio: 4:1

Burst pressure:600psi/42bar

Fatigue cycle: 100,000
