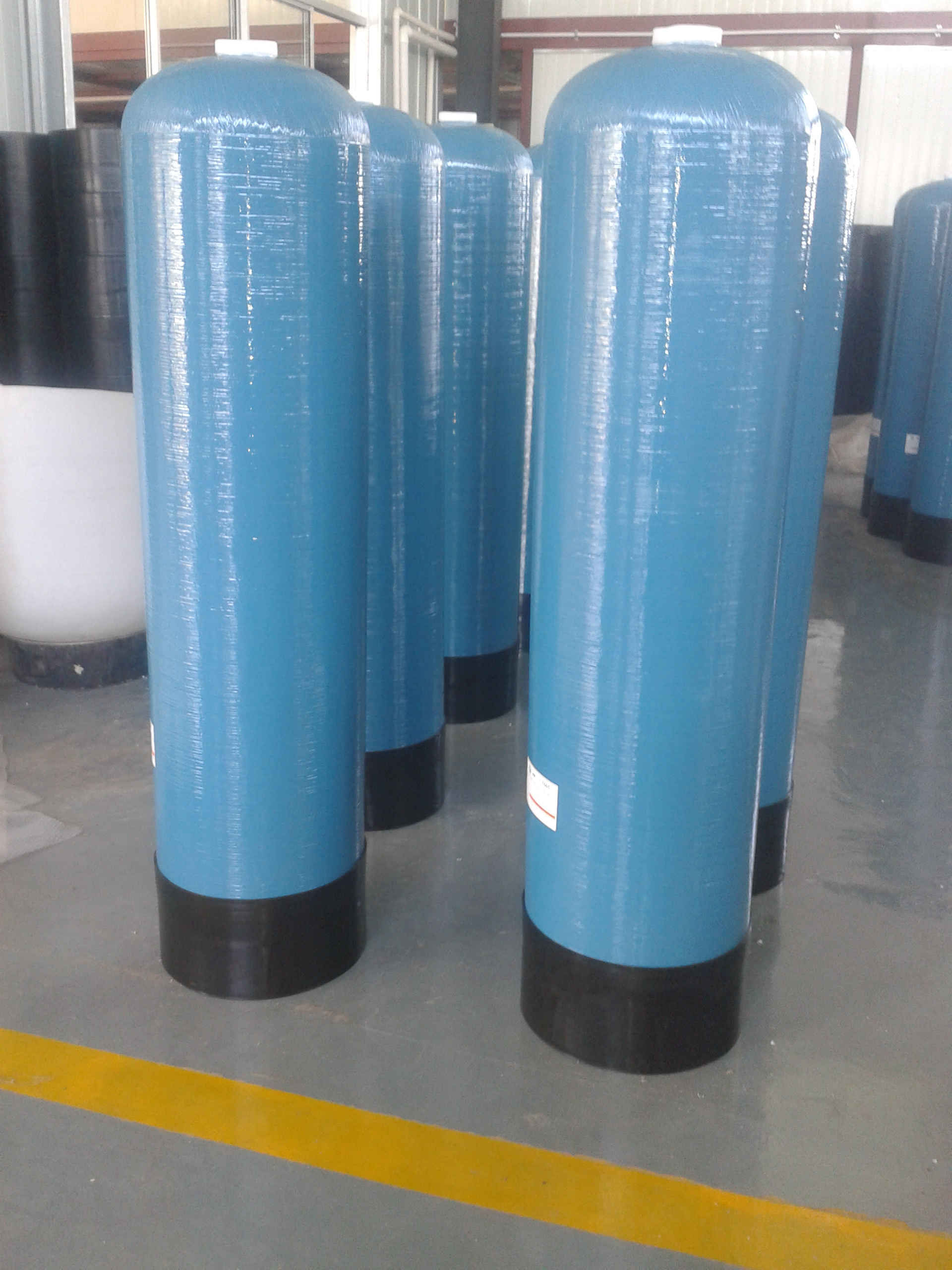

FRP tank: 1465inch

Size:355*1665(mm)

Capacity:148L

Opening:2.5"

In/out pipe: 1"

Matching valve: F15/D/2750

Filter average flow: 9GPM;

Softener average flow: 13GPM

Media weight: 175Kg(sand)/50Kg(carbon)/100L (resin)

Matching brine tank: 200L

Structure & Materials

Liner Material: PE(polyethylene), blow molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Bass Materials: PP

Application conditions

Working pressure: <150psi/10.5bar

Working temperature: 1-49^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -2^oC

Design parameter

Burst pressure: 600psi/42bar;

Fatigue cycle: 100,000
