FRP Tank 949173816

Price :

Type : 6383(inch),6T6B

Function : pressure vessel

Packaging Size : wooden pallets:147*147*12(cm)

Delivery Period : 1 day

Availability : total 20 items, Sold pieces 0 items, Pieces Left 0 items
This product has been viewed 123 times

Detailed Information

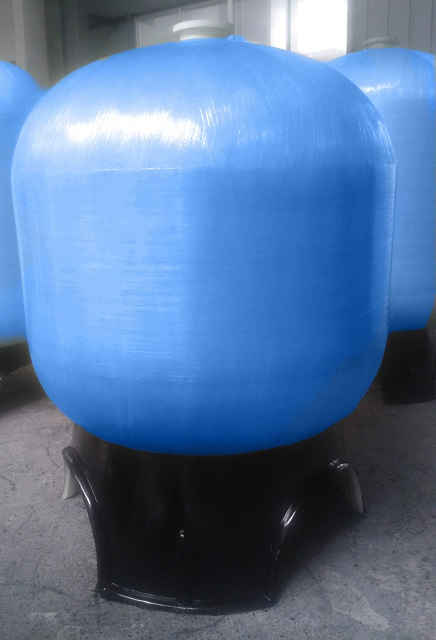

FRP tank: 6383inch

Size:1600*2100mm

Capacity:2580L

Opening:6"-6"flg

In/out pipe: 3"

Matching valve: JMA501, DN80*3&DN100*2

Filter average flow: 178GPM;

Softener average flow: 267GPM

Media weight: 2950Kg(sand)/1125Kg(carbon)/1750L
(resin)

Matching brine tank: 2000L*2

Structure & Materials

Liner Material: PE(polyethylene), rotation molding, seamless without leakage

Outer Winding: High performance Fiber Glass and Epoxy Resin;

Opening: 4"reinforced plastic thread, 6" alloy flange

Bass Materials: FRP

Application conditions

Working pressure: 150psi/10.5bar

Working temperature: 1-4^oC

Max. vacuum: 127mm Hg

Lowest environment temperature: -27^oC
